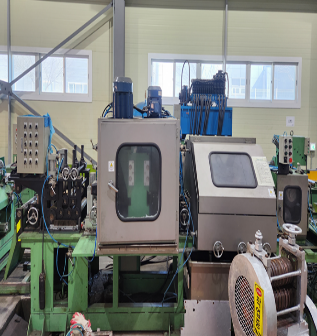

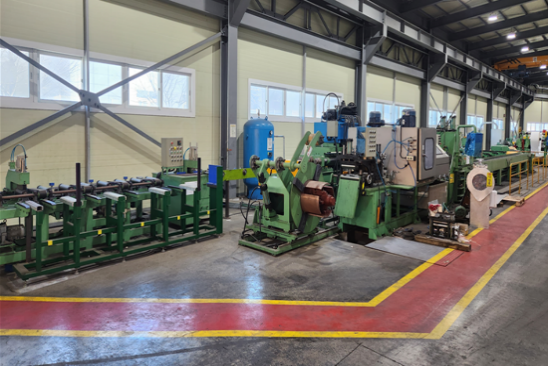

Draw Bench - Samjung ENG ( Korea )

· Manufacture :

  -. Year : 2019. 04

  -. Company : Samjung ENG ( Korea )

· Pass Direction : Left to Right

· Working Data

  -. Material : Copper

  -. Input Dimension

    *. Strip : Max 7.5mmt X 200mmw ( TS : 195-315 Mpa, Hardness : Hv 45-120 )

    *. Rod : Max 105mmΦ

    *. Square Bar : Max 105mm X 105mm

  -. 0ut Dimension

    *. Strip : 7 - 25mmt X 41 - 200mmw

    *. Rod : Max 100mmΦ

    *. Suare Bar : Max 100mm X 100mm

  -. Uncoiler Inside Dia : 480-510 mmΦ

  -. Drawing Length : 5,000-10,000mm

· Line Data

· Uncoiler

  -. Driven Motor : 0.4Kw 4 Pole  Ratio 150 : 1

  -. Drum Dimension : 508 mmΦ X 320 mm Face

· Feeding Roll

  -. Driven Motor : 1.5Kw 4 Pole  Ratio 60 : 1

  -. Roll Dimension : 150 mmΦ X 350 mm Face

· Leveller

  -. Driven Motor : N0n-Driven

  -. Roll Dimension : 60 mmΦ X 350 mm Face

· Draw Bench

  -. Driven Motor : DC 120Hp  650/1750RPM  Ratio 65.6 : 1

· Stretcher

  -. Driven Motor : 1.5Kw 4 Pole  Ratio 10 : 1

· Composition

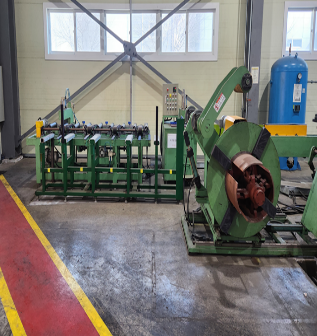

  a. Uncoiler With Snubber Roll

  B. Shaving Table

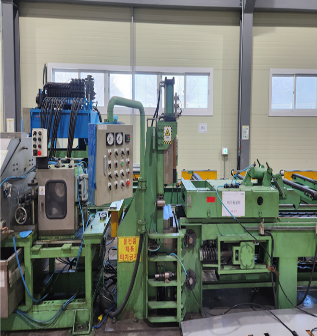

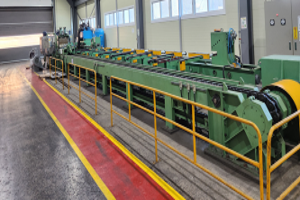

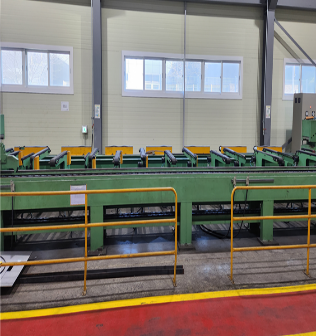

  c. Draw Bench

  d. Stretcher

  e. Sawing Table

**The specifications presented include unverified and estimated parts.**

**The price is quoted as is where is at the time of sale.**

**All specifications are subject to verification by purchaser**

제품 개요

ASKINDEX 코리아가 취급하는 중고 공장설비관계 제품, Samjung ENG ( Korea )입니다. 현재 판매 완료된 상품으로, 동일 모델 재입고·유사 재고 문의 및 견적 상담이 가능합니다. 동일 제조사(Samjung ENG ( Korea )) 및 동일 카테고리(공장설비관계) 중고 제품도 함께 비교해 보실 수 있습니다.
