Buffing Line - Youngchang Machinery ( Korea ) Fine Surface Grinding Line

Fine Surface Grinding Line

· Manufacturer :

  -. Company : Youngchang Machinery ( Korea )

  -. Manufacturing Year : 2019. 03

· Type : Roll Grinding

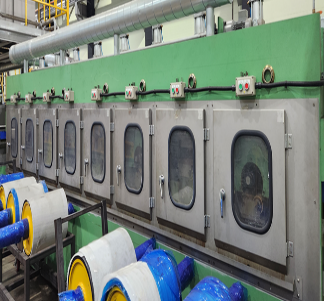

  -. Number of wheel : 4 Bottom & 4 Upper

  -. Number of Grit : Scotch-Brite CRS to ULF

  -. Wheel Dimension : 80mmΦ ID X 150mmΦ OD X 250mmL

· Wheel Power : AC 7.5Kw 6Pole

· Pass Direction : Right to Left

· Working Data

  -. Thickness : 0.1 - 2.0 mmt

  -. Width : Max 200 mm

  -. Coil Weight : 600 Kg

  -. Speed : Max 20 m/min

· Line Data

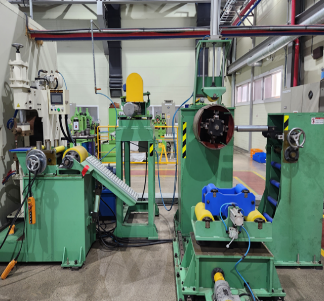

· Uncoiler

  -. Coil Dia : 300 - 500mmΦ -  1,150mmΦ

  -. Motor : 2.2 Kw 4Pole

  -. Reduction Rate : 87 : 1

· Single Bridle Roll

  -. Motor : 3.7 Kw 4Pole

  -. Reduction Rate : 165 : 1

  -. Roll Dimension : 600mmΦ X 800mmL

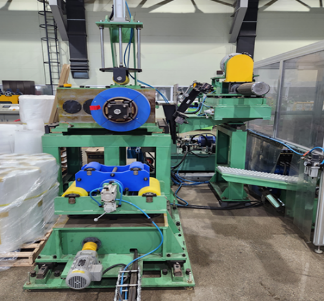

· Recoiler

  -. Coil Dia : 300 - 500mmΦ -  1,150mmΦ

  -. Motor : 5.5 Kw 4Pole

· Accessory Equipment : Coil Rewinding Unit

  -. Coil Dia : 300 - 500mmΦ -  1,150mmΦ

  -. Motor : Uncoiler 0.75Kw 4 Pole

  Lifting : Induction 1.5Kw

  Rewinder : Induction 3.7Kw

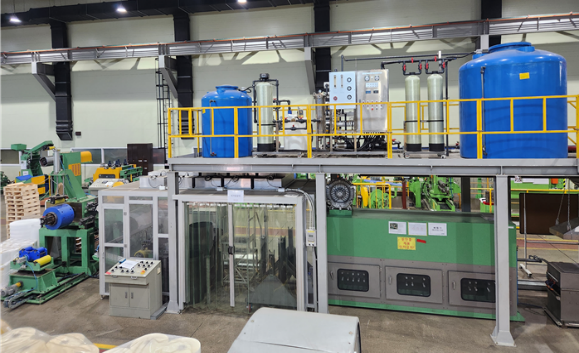

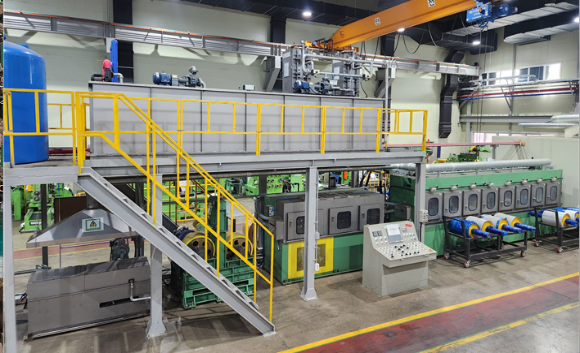

· Composition

  a. Uncoiler driven by Motor, with Snubber Roll.

  B. Deflector Roll With Side Guide

  c. Spot Welder

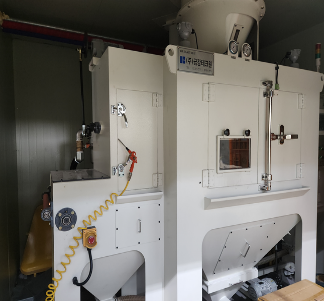

  d. Shot Blast Unit

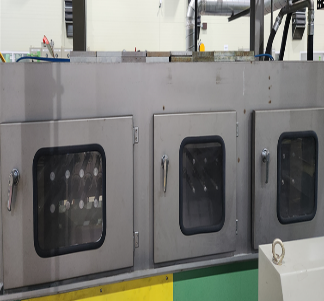

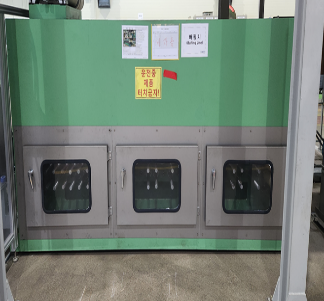

  e. Griding Unit

  f. Shower Unit

  g. Single Bridle Roll

  h. Air Knief Unit

  i. Dry Unit by Hot Air

  j. Recoiler with Snubber Roll

  **. Accessory Equipment : Coil Rewinding Unit

**The specifications presented include unverified and estimated parts.**

**The price is quoted as is where is at the time of sale.**

**All specifications are subject to verification by purchaser**
